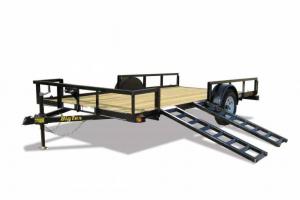

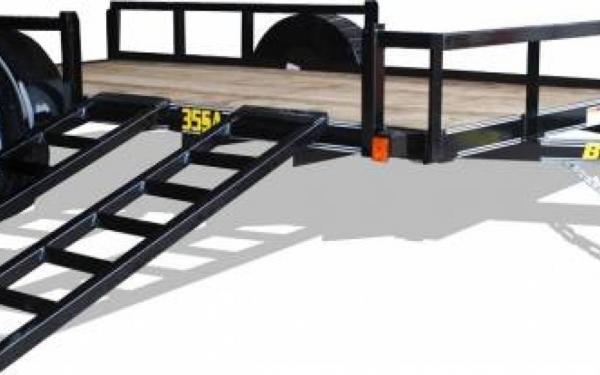

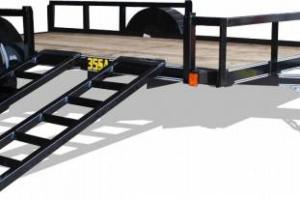

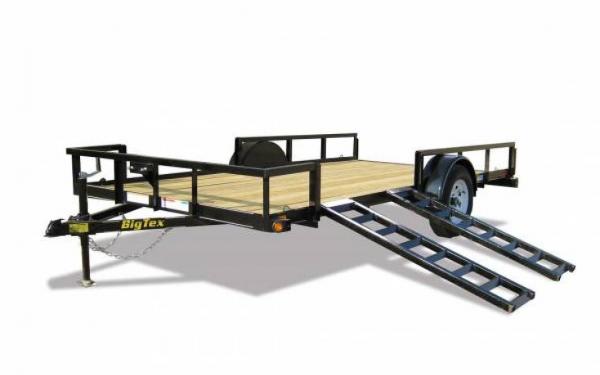

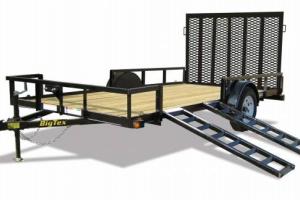

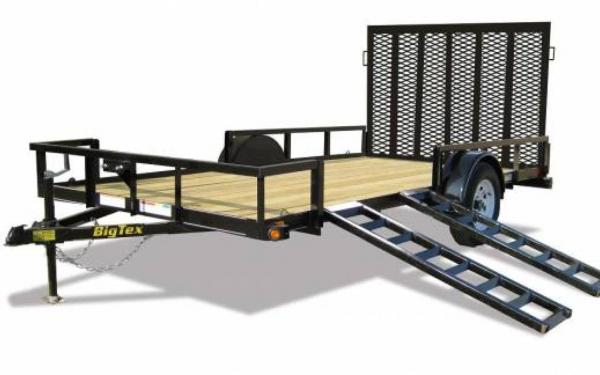

Big Tex 35SA-12RSX ATV
Call for Quote
(613) 880-5550Arnprior, ON
At a generous 77" wide, the 35SA Single Axle Utility Trailer from Big Tex is ideal for home and garden tasks and can even accommodate many side-by-side models. Available "X" configurations of the 35SA push the width to 83" adding deck space, capability and versatility.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
Big Tex 35SA-12RSX ATV
35SA-12BKRSX
Specs:
*G.V.W.R. 2,995#
*G.A.W.R. 2,995#
*Coupler 2" A-Frame
*Safety Chains 1/4" Grd. 30 w/Safety Latch Hook (2 each)
*Jack 2K Top Wind (Bolted On)
*Tongue 3" Channel Tongue
*Top Rail 2" Square Tubing
*Frame 4" x 3" x 1/4" Angle
*Crossmembers 3" x 2" x 3/16" Angle
*Uprights 14" Tall, 2" x 2" x 1/8" Angle
*Fenders 9" x 32" Rolled Formed w/Back
*Axle 3,500# EZ Lube w/Brake Flanges
*Suspension Multi-Leaf Slipper Spring
*Tire ST205/75-15 Load Range C
*Wheel 15 x 5 White Spoke 5 Bolt
*Floor 2" Pine
*Lights LED D.O.T. Stop, Tail, Turn, & Clearance
*Elec. Plug 4-Way Flat w/Loom
*Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish
*Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
Standard Features:
*Safety Chains Attached w/Cold Rolled Eyelets
*Sand Foot on Jack
*Lower Jack Support Plate
*2" Square Tubing Top Rail
*6 Tie Down Loops
*3,500# EZ Lube Axle w/Flanges for Easy Brake Addition
*2-5' Square Tubing Ramps (16" Wide) that can be used on either Side and on Rear
*Spare Tire Mount
*Rear Tail Board Channels
*Grommet Mount Sealed LED Lighting
- Availability:
- Order In
- Axle Config:
- Single
- Max Payload:
- 1855 lbs.
- External Width:
- 83"
- External Length:
- 12'
- Hitch Type:
- Bumper Pull
- Category:
- ATV Trailers
- Year:
- 2015
- Condition:
- New
- Material:
- Steel
- Rear Type:
- Ramp
- Color:
- Black
- GVWR:
- 2995
- Capacity:
- 1855
Features/Specifications
Features
| Axle | 3,500# Quick Lubricating Hub Axle w/ Brake Flanges |
|---|---|
| Jack | 2,000# Top Wind, Set-Back Jack |
| Tire | ST205/75R-15 Load Range C |
| Floor | 2" Treated Pine or Douglas Fir* |
| Frame | 3" x 2" x 3/16" Angle |
| Wheel | 15" x 5; Black Mod, 5 on 5 Bolt Pattern |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Tongue | 3" Channel |
| Coupler | 2" A-Frame |
| Fenders | 9" x 32" Rolled Formed w/ Back |
| G.V.W.R. | 2,995# |
|---|---|
| Top Rail | 2" x 2" Square Tubing |
| Uprights | 15" Tall Angle, 2" Angle |
| Elec. Plug | 4-Way Flat w/ Loom |
| Hitch Type | Bumper Pull |
| Suspension | Multi-Leaf Spring |
| Crossmembers | 3" x 2" x 3/16" Angle |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional, Smooth Finish |
| Safety Chains | 1/4" Grd. 30 w/ Safety Latch Hook (2 ea) |
| G.A.W.R. (Ea. Axle) | 3,500# |
Specifications
Big Tex 35SA Single Axle Utility Trailer
| Model | Description |
|---|---|
| 35SA-10 | 77" x 10' Single Axle Utility Trailer |
| 35SA-12 | 77" x 12' Single Axle Utility Trailer |
| 35SA-14 | 77" x 14' Single Axle Utility Trailer |
Dimensions
| Length | A | B | C |
|---|---|---|---|
| 10' | 121-1/2" | 73" | 48-1/2" |
| 12' | 145-1/2" | 85" | 60-1/2" |
| 14' | 169-1/2" | 97" | 72-1/2" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 10' | 893# | 2,102# | N/A |
| 12' | 983# | 2,012# | N/A |
| 14' | 1,073# | 1,922# | N/A |
Standard/Optional Equipment
Standard Equipment
- (4) Tie Down Loops Inside Bed
- Quick Lubricating Hubs
- Premium Brand Axles
- Durable Pipe Top Rail
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Radial Tires
- Brake Flanges on Axle for Easy Brake Addition
- Removable Sand Foot on Jack
- Protected Wiring
- A-Frame Channel Tongue
Optional Equipment
| Category | Description |
|---|---|
| BODY | 2 High Sides (Open) |
| BODY | 3 High Sides (Open) |
| BODY | 4 HIGH SIDES (OPEN) |
| BODY | Blackwood Pro Rubber Infused Floor |
| BODY | Car Hauler Style (No Side Rails) |
| BODY | Enclose Sides w/ Expanded Metal |
| BODY | Enclose Sides w/ Sheet Metal |
| BRAKES | Electric Brakes w/ Complete Brake-Away Kit |
| CARGO CONTROL | Additional Tie Loops |
| CARGO CONTROL | Stake Pockets |
| COUPLER | 2" Forged Coupler |
| JACK | 2,000# Fold-Up Jack |
| RAMPS | 4 Slide-In Ramp Package |
| RAMPS | 4 Tall Bi-Fold Rear Ramgate w/ Coil Spring Assist |
| RAMPS | 4 Tall Rear Rampgate w/ Coil Spring Assist |
| RAMPS | 5 Tall Rear Rampgate W/ Coil Spring Assist |
| TIRE/WHEEL | Spare Tire Mount (Side) |
| TIRE/WHEEL | Spare Tire and Wheel (ST205/75R-15 LR-C) |
