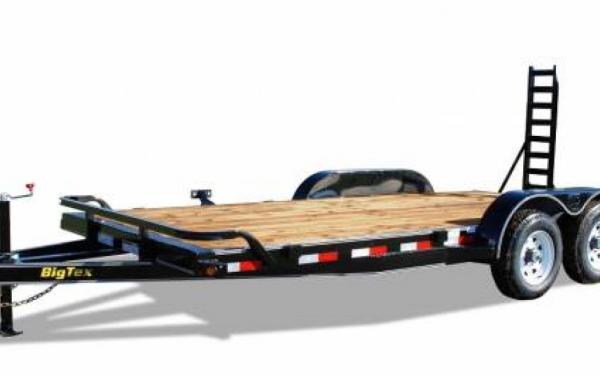

Big Tex 10ET-18 Pro Series
Call for Quote
(613) 880-5550Arnprior, ON
The 10ET Pro Series Tandem Axle Utility Trailer from Big Tex Trailers is tough and durable with 5,200# axles. Multiple length options and a flush floor provides versatility for any haul from light to medium duty to small tractors.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
Big Tex 10ET-18 Pro Series
10ET-18BK
Specs:
*G.V.W.R. 9,990#
*G.A.W.R. (Ea. Axle) 5,080#
*Coupler Adjustable Forged 2-5/16"
*Safety Chains 1/4" Grd. 70 w/Safety Latch Hook (2 each)
*Jack 7K Drop Leg (Bolted On)
*Tongue 5" Channel Fold Back
*Top Rail None
*Frame 5" Channel
*Crossmembers 3" Channel
*Uprights None
*Fenders 9" x 72" Tear Drop w/Back (Removable)
*Axles Two 5,200# EZ Lube w/Electric Brakes
*Suspension Multi-Leaf Spring w/Equalizer
*Tire ST225/75-15 Load Range D
*Wheel 15 x 6 White Spoke 6 Bolt
*Floor 2" Pine
*Lights LED D.O.T. Stop, Tail, Turn, & Clearance
*Elec. Plug 7-Way RV
*Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish
*Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
Standard Features:
*Adjustable Forged Coupler
*Safety Chains Attached w/Cold Rolled Eyelets
*7K Drop Leg Jack
*Lower Jack Support Plate
*Fold Back Tongue (14' and longer)
*Tie Down Pockets, Sides & Front
*2" Tubular Stop Rail
*Floor Secured w/Torx Screws
*Cambered EZ Lube Axles w/Electric Brake on Each
*Complete Break-A-Way System w/Charger
*Spare Tire Mount
*32" Dovetail
*5' Stand-Up Ramps w/Support Leg
*Reflective Marker Tape
*Grommet Mount Sealed LED Lighting
- Availability:
- Order In
- Axle Config:
- Tandem
- Max Payload:
- 7530 lbs.
- External Width:
- 83"
- External Length:
- 18'
- Hitch Type:
- Bumper Pull
- Category:
- Equipment Trailers
- Year:
- 2015
- Condition:
- New
- Material:
- Steel
- Rear Type:
- Dove Tail
- Color:
- Black
- GVWR:
- 9990
- Capacity:
- 7530
Features/Specifications
Features
| Axle | (2) 5,200# Quick Lubricating w/Electric Brakes |
|---|---|
| Jack | 8,000# Drop Leg (Bolted On) |
| Tire | ST225/75 R-15 Load Range D |
| Floor | 2" Treated Pine or Douglas Fir* |
| Frame | 5" Channel |
| Wheel | 15" x 6"; Black Mod 6 Bolt |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn and Clearance |
| Tongue | 5" Channel Fold Back/Wrap |
| Coupler | Adjustable Forged 2-5/16" |
| Fenders | 9" x 72" Tear Drop w/Back (Removable) |
| G.V.W.R. | 9,990# |
|---|---|
| Top Rail | 3/16" Fabricated Front Stop Rail |
| Uprights | NONE |
| Elec. Plug | 7-Way RV |
| Hitch Type | Bumper Pull |
| Suspension | Multi-Leaf Spring w/Equalizer |
| Crossmembers | 3" Channel |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| Safety Chains | 1/4" Grd. 70 w/Safety Latch Hook (2 ea) |
| G.A.W.R. (Ea. Axle) | 5,080# |
Specifications
Big Tex 10ET Pro Series Tandem Axle Equipment Trailer
| Model | Description |
|---|---|
| 10ET-16 | 83" x 16' Pro Series Tandem Axle Equipment Trailer |
| 10ET-18 | 83" x 18' Pro Series Tandem Axle Equipment Trailer |
| 10ET-20 | 83" x 20' Pro Series Tandem Axle Equipment Trailer |

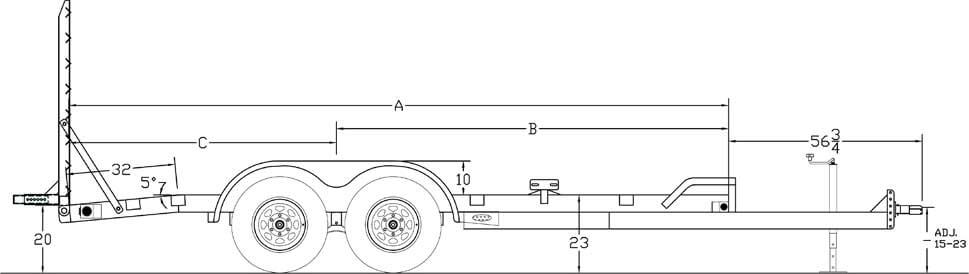

Dimensions
| Length | A | B | C |
|---|---|---|---|
| 16' | 193-1/2" | 115" | 78-1/2" |
| 18' | 217-1/2" | 127" | 90-1/2" |
| 20' | 240" | 138' | 102" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 16' | 2,320# | 7,670# | N/A |
| 18' | 2,420# | 7,570# | N/A |
| 20' | 2,520# | 7,470# | N/A |
Standard/Optional Equipment
Standard Equipment
- Rubrail and Stake Pockets Along Sides
- 36" Cleated Dovetail
- 4 Tall Channel Knee Ramp (KR)
- Forged Adjustable 2-5/16" Coupler
- Fold Back/Wrap Tongue
- Set-Back, 8,000# Drop Leg Jack
- Fabricated Front Stop Rail
- Quick Lubricating Hubs
- Premium Brand Axles
- Cambered Axles
- Tear Drop Style Fenders (Removable)
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed Modular Wiring Harness
- Spare Tire Mount
- Complete Break-A-Way System w/Charger
- Radial Tires
- (6) D-Rings to Secure Equipment
Optional Equipment
| Category | Description |
|---|---|
| BODY | 1/8" Diamond Plate Steel Floor |
| BODY | Blackwood Pro Rubber Infused Floor |
| CARGO CONTROL | 5/8" D-Ring |
| CARGO CONTROL | Recessed D-Ring in Floor (Steel Floor Only) |
| COUPLER | Adjustable Pintle in Channel in Lieu of Coupler |
| RAMPS | 3 Self Cleaning Dovetail w/3 Mega Ramps |
| RAMPS | 32" Wood Filled Dovetail in Excisting Length w/5 Stand Up Ramps |
| RAMPS | 5 Rear Slide In Ramps (Straight Deck w/ Stabilizers) |
| TIRE/WHEEL | Spare Tire (ST225/75 R-15 LR-D) |
